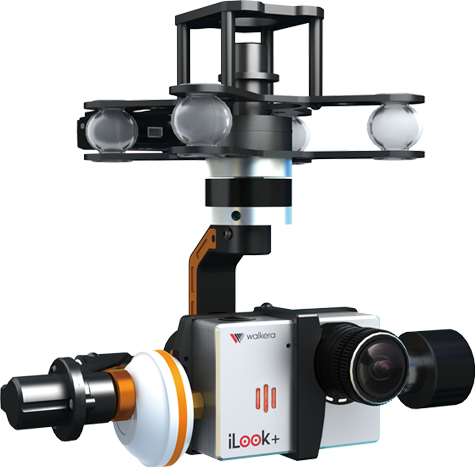

WALKERA - G-3DH

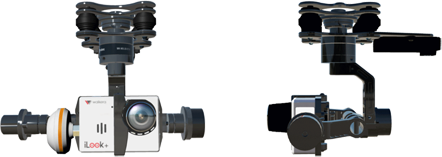

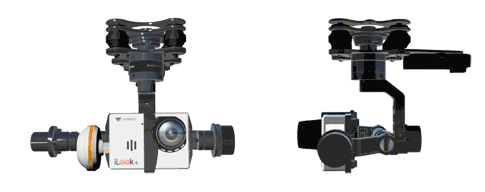

Perfect support iLOOK+、Gopro3/3+、Gopro4 (silver) camera
360 degree omnidirectional aerial
photograph
Smart design, Aluminium production

High precision

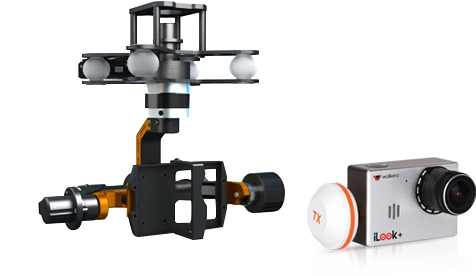

Easy to operate, more stable in aerial photography,
perfectly support iLook+, Gopro3, Gopro3+
Gopro4(silver) camera

Smart design

Aluminum processing, with features of
high precision and light weight
Accuracy control of pitch/roll ranges/Horizontal
tilt ±360°continuous rotation, roll ±35°,
Horizontal ±360°continuous rotation

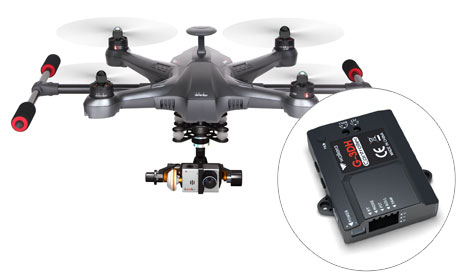

Brushless motor control

Brushless motor is designed specially
for G-3DH, with the latest attitude control system,
it can rectify in time the flight attitude when
shooting pictures, and make images more stable

High precision control system

The latest attitude control system,
can avoid greatly the shaking phenomenon
when shooting pictures,
and achieve the best effects of images.

Upgrade online

It can support free online program upgrading,
and make a more secure flight.

- •G-3DH Features and Technical Parameters
- • Support iLook, iLook+, Gopro series camera video auxiliary output.
- •Support power supply voltage compensation.
- •Support the motor drive end short circuit protection.
- •Support initial tilt and roll angle custom.
- •Support stick position mode and rate mode.
- •Support Reset mode, Orientation-locked mode and Non orientation-locked mode.
- •Support regular receiver.
- •Operating voltage: DC 7.4V~28V (recommended 12V, 3S lipo battery).
- •Operating current: 500mA-600mA (depends on the voltage supplied and motor power).
- • Operating temperature: -15℃~ 65℃.
- •Sensor: 3-axis MEMS gyro and 3-axis MEMS accelerometer.
- •Control accuracy：0.02°.
- •Controllable rotation range: tilt ±360° continuous rotation, roll
- •±35°,Horizontal ±360° continuous rotation.
- •Applicable camera: iLook, iLook+, Gopro series.
- •Size: 148mm x 155mm x 147mm(L x W x H).
- •Weight: 277g(Without camera).

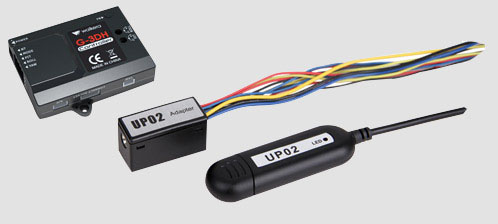

- •The controller program can be upgraded on Walkera website (UP02 and
- UP02 adapter requested).
