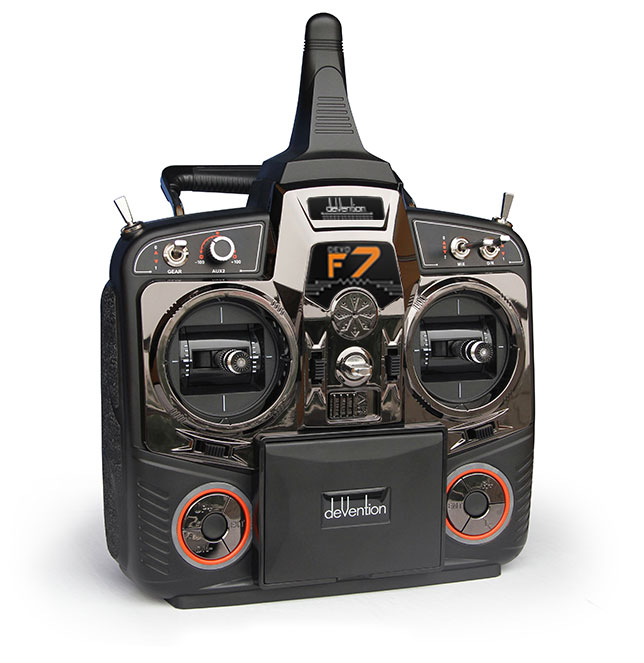

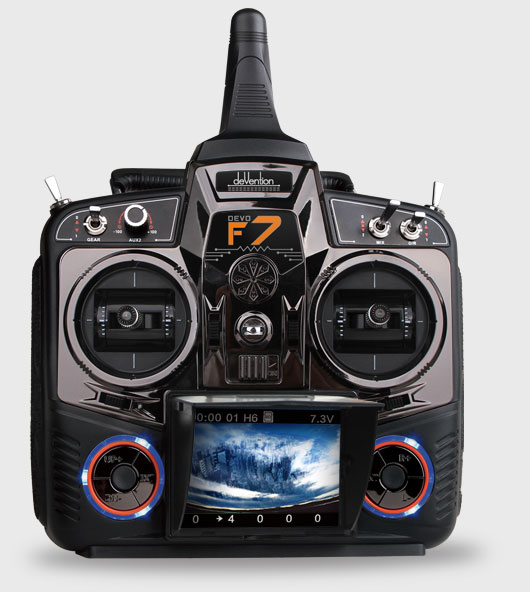

WALKERA - Devo F7

3.5” LCD display and
5.8 GHz FPV real time
Image monitor

automatic ID binding, automatic ID assignment
and also features fixed ID,Two mode types of
helicopter and airplane are available

Adopts 2.4GHz Direct Sequence
Spread Spectrum (DSSS)
It can be customizedly set as fixed ID
and automatic ID assignment.
5.8G real time image transmittion

DEVO F7 takes 2.4 GHz Direct Sequence Spread Spectrum (DSSS) technology and 5.8ghz FPV and features automatic ID binding, automatic ID assignment, and also features fixed ID set by yourself. The usage of wireless copy function keeps you away from the trouble in wire link-up. Two mode types of helicopter and airplane are available to meet your requirements for different models. 3.5” LCD display and 5.8G real time Image monitor, it offers you convenient operation,FPV makes the flight more easier. Online update via USB ensures a transmitter in hand not to be out of date and makes it full of vigour.

Features

The DEVO F7 adopts 2.4 GHz Direct Sequence Spread Spectrum (DSSS) technology and features automatic ID binding and ID assignment. It can also be customizedly set as fixed ID code.
5.8G real time image transmittion.
USB online update makes you always enjoy the latest firmware.
Adjustability of hi-frequency output power enjoys more personality and friendly environment.
Wireless data transmission between two DEVO F7 helps experience the training function.
Up to 15-model data can be saved.
DEVO F7 adjusting the gyro sensitivity makes hovering flight and fancy flight in an easy way.
Super large LCD display features direct and convenient setting.
Shape design accords with human engineering and provides comfortable holding.
Both the length and tension of the sticks can be adjustable.
DEVO F7 can be freely switched among Mode 1,2,3 and 4
DEVO F7 supports Helicopter and Airplane. The Helicopter mode provides three flight modes, each of which can be freely set and its parameters can be personalizedly adjusted to meet the requirement for F3C or 3D aerobatic flight.

Transmitter Specification

Encoder: 7-channel micro computer system
Frequency: 2.4GHz DSSS
Output power: ≤100mW
Current drain: ≤500mA (100mW)
Transmitter power supply: 7.4V800mAh
Output pulse: 1000—2000Ms（1500 Neutral）
Image receiving: 5.8G
Channel selection: 8 channel

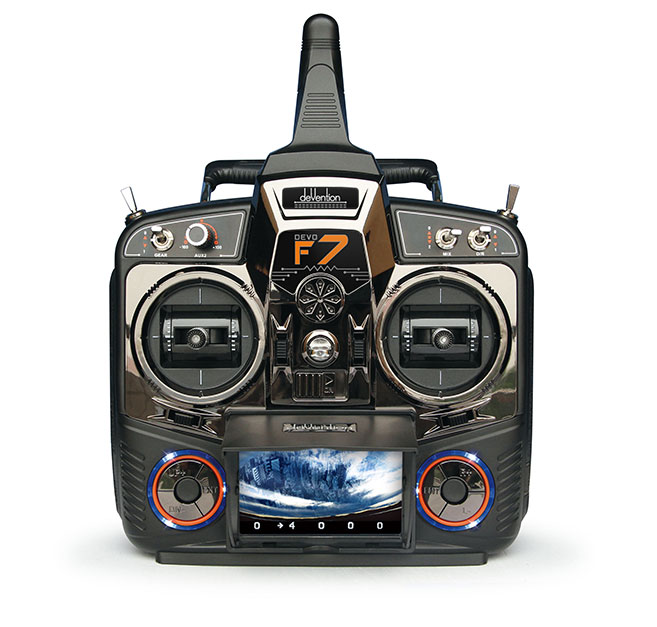

Panel Definition

Antenna

AUX2

HOLD TRN

GEAR

Eyelet

ELEV Trim

Stick ELEV/RUDD

RUDD Trim

ENT

UP/DN

Handle

MIX

FMOD Swith

AILE/AILE
RUDD
D/R

THRO Trim

THRO/AILE Stick

Power Switch

AILE Trim

ENT

R/L

LCD Display

Rear Definition

Bottom Cover Screw 1

Power connector

Bottom Cover Screw 2

Battery Compartment Cover

Bottom Cover Screw 3

DSC

Bottom Cover Screw 4

Digital Signal Converter socket (DSC): for simulator flight practice via computer (You need a software and its dongle which are available in hobby shops)，and used for training.

Power connector: input DC at 8-12V, 1000mA

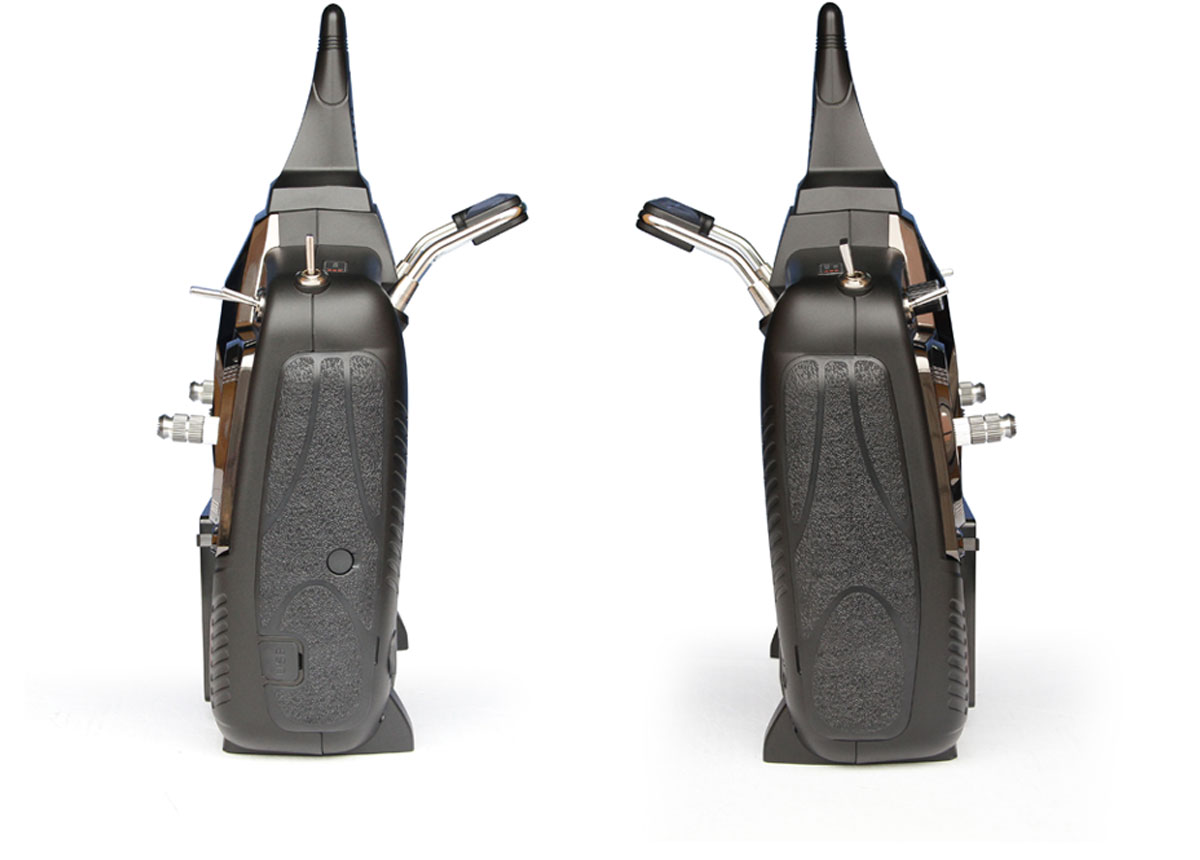

Side view

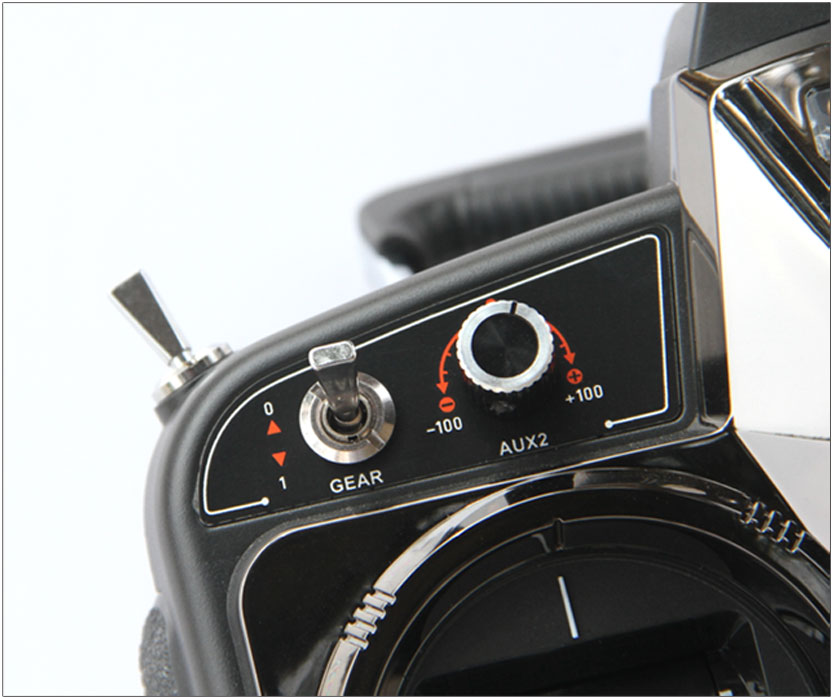

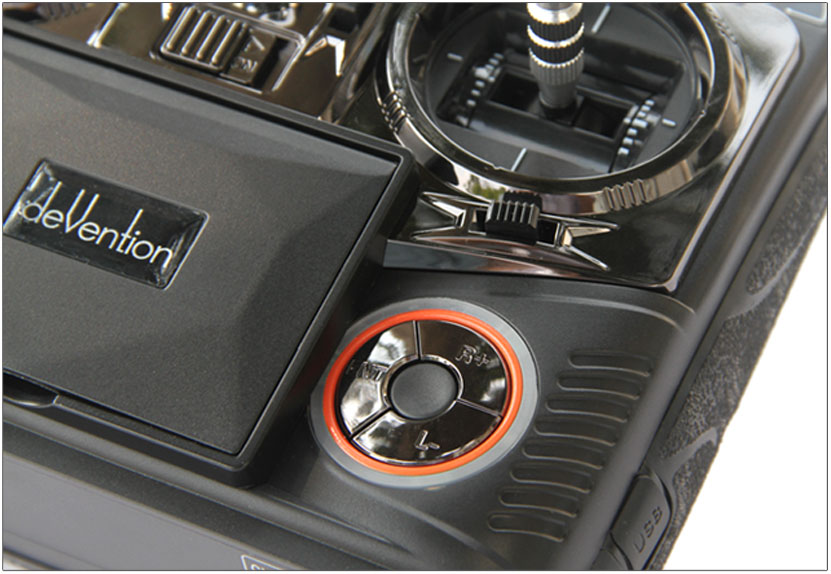

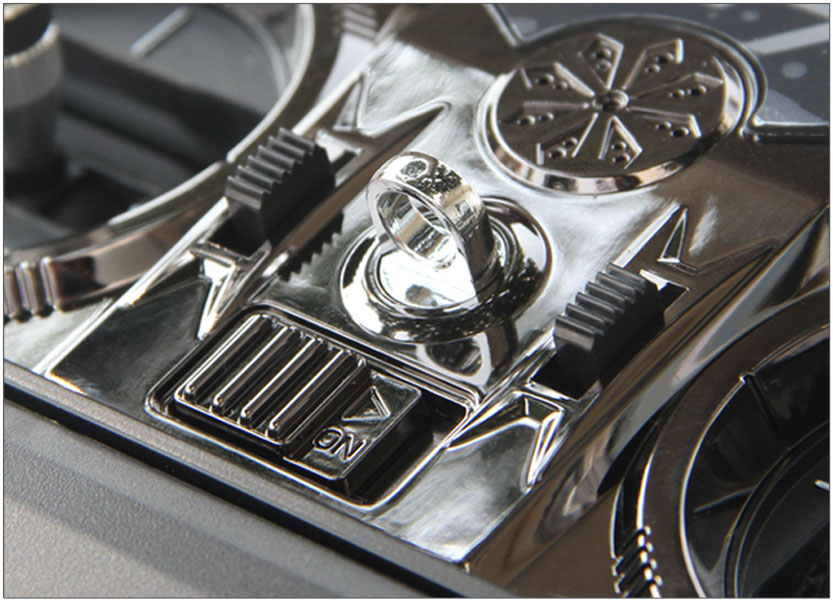

Detail exhibited

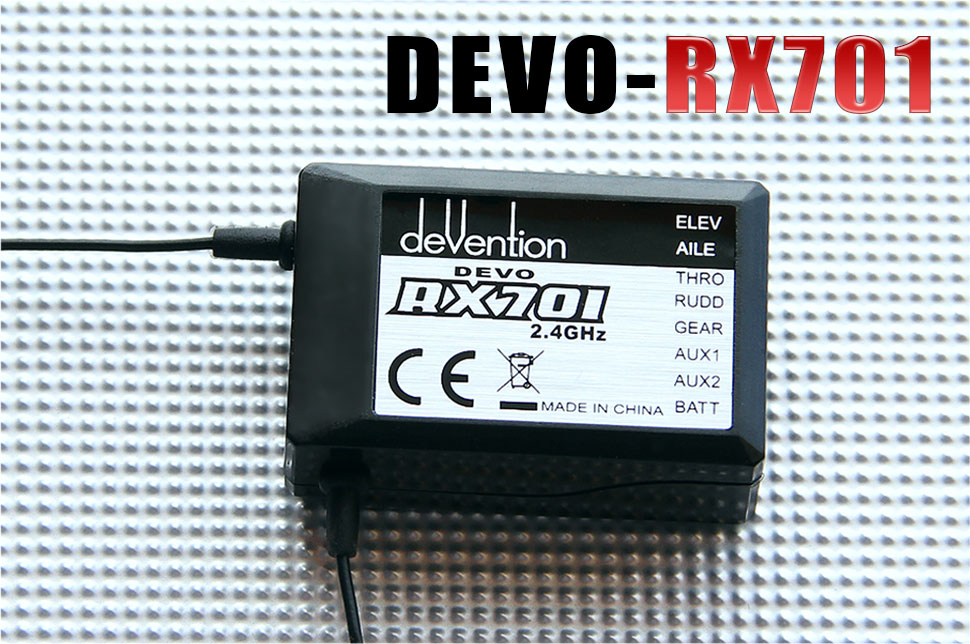

Receiver Specification

Adopts 2.4GHz Direct Sequence Spread Spectrum (DSSS) that features fast
reaction and strong anti-jamming protection.
Double reveiving circuits effectively assure the stability of receiving singal.
The Single Chip Micyoco as CPU provides super-strong analysing ability.
The Receiver maintains the frequency and the ID memories when its
changing a new battery pack with the transmitter powered on.
It can be customizedly set as fixed ID and automatic ID assignment.

Type: 2.4GHz 7 channels
Sensitivity:- 105dbm
Frequency Interval: ≥ 4M
Weight: 11.6g
Dimension: 43X28X16mm
Receiver Battery: 4.8-6V1300mAh

Devo F7

3.5” LCD display and5.8 GHz FPV real timeImage monitor
