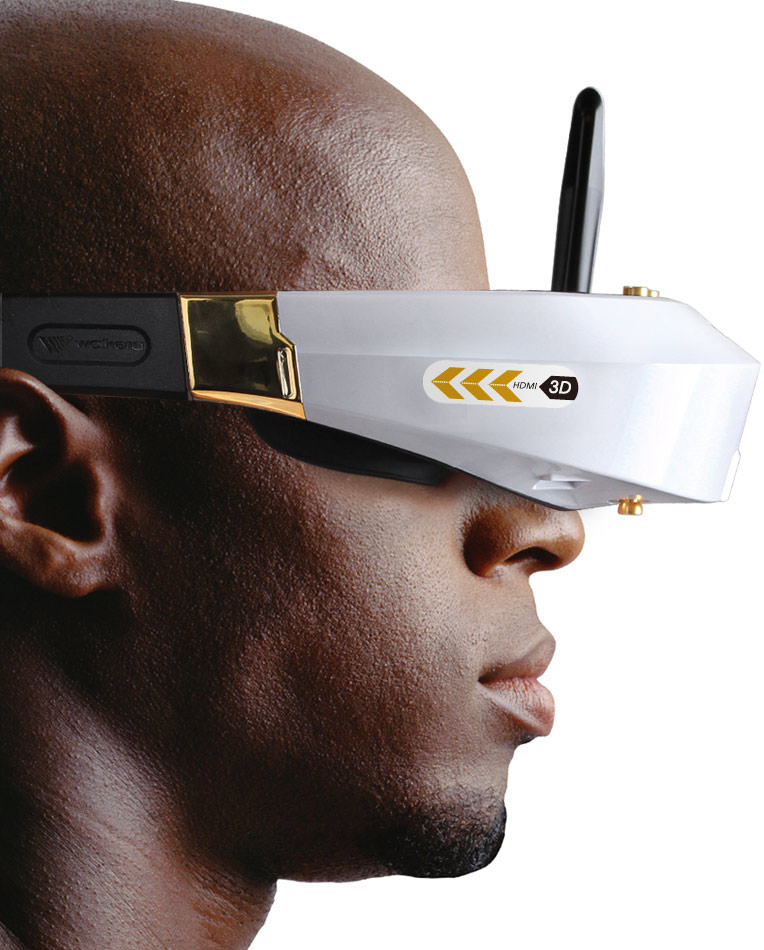

WALKERA - Goggle3

5.8G Outdoor FPV aerial glasses/3D video glasses

360°Outdoor FPV aerial photography / 3D video viewing artifact

Goggle 3 support 360° panoramic aerial, after connected the coach line and R/C remote, start the head tracking model,
Through the pitching and steering of head, to operate the gimbal, then implement the head tracking.
32° field angle and binocular straight 8 p Light Engine. 5.8G image transmission,32 transmitting channels optional,
FPV aerial strainght. Digital Video support micro SD card (up to 32GB),
can be recorded as MJPG (30 FPS) and AVI format, and support video file playback function.
Internal rechargeable battery, can continuous work more than 120 minutes after saturation charge.
Mini HDMI port (720 P 50/60 Hz)after connected to the PC, can use Goggle 3 watch 720 p HD 3D video.

: SVGA display mode

: 32° field
angle

: 5.8G image
transmission

: stereophonic

: Internal
rechargeable
battery

: LCD
monitor

: 3D video
viewing

: Head pitching and
steering tracking

: Automatic
selection
system

: Micro USB
port

: Micro HDMI
port

: Micro SD cart
port

: Brightness
contrast
adjustment

: FPV main
view

: Record video
playback

: LED
backlight

3D visual, like a scene

Mini HDMI port (720 P 50/60 Hz)after connected to the PC,
can use Goggle 3 watch 720 p HD 3D video.
Support MJPG（30fps）and AVI format

LED backlight, HD LCD display

32 degree viewing angle,
double vision 8P significant optical engine. LED backlight,
800X600 (SVGA) LCD. NTCS / PAL
formats automatic switching.

Runner 250 >>

Immersive flying experience

Whether racing or aerial shooting ,
Goggle 3 brings you immersive FPV experience.

VOYAGER 3 >>

Head tracking and 360 degree panoramic aerial photography

Goggle 3 support 360 degree panoramic aerial photography; After connecting coach line with R / C remote control,
open the head tracking function, the gimbal will bring the camera to achieve
real-time tracking following the wearers’ head action.

Stereo experience

Use 3.5mm 3 degree headphone jack, stereo audio output

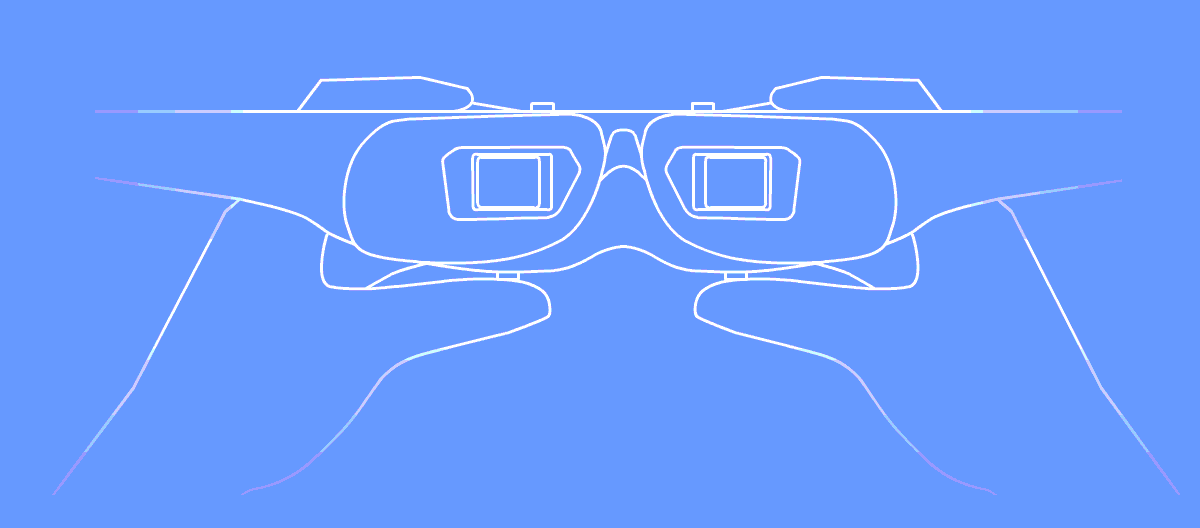

Comfortable eye shield and adjustable IPD (focal distance)

Support 58-68mm focal distance flexible adjustment according to different user needs,
with environmental protection silicone goggles,
can better protect skin , and good shading

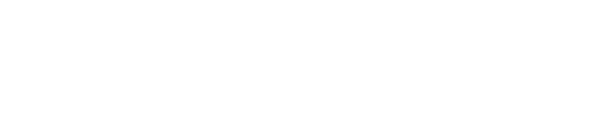

Easy wear shackle

Environmental protection silicone wearing paste with the shackle,
can wear Goggle 3 on the head easily.

Low voltage alarm sound

Built-in rechargeable lithium battery.
After a full charge can be used for more than 120 minutes.
When the voltage is too low, it will trigger alarm beeps.

5.8G reception, 32 selectable channels

With standard 5.8G antenna and 5.8G mushroom antenna for long-range transmission.
32 channel, can please select the best channel in good image quality.

Standard 5.8G antenna

5.8G mushroom antenna for long-range transmission

Portable Package

Zippered bags, hand-carry design, it’s easy carrying for
outdoor aerial FPV photography.
