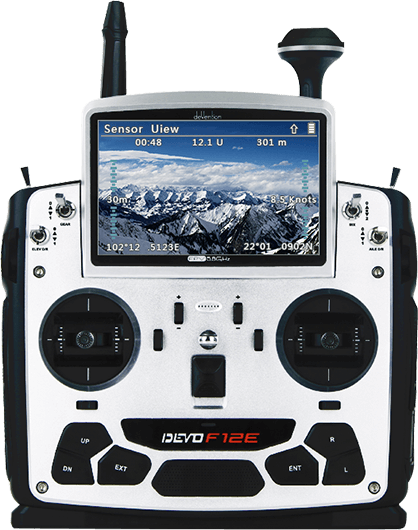

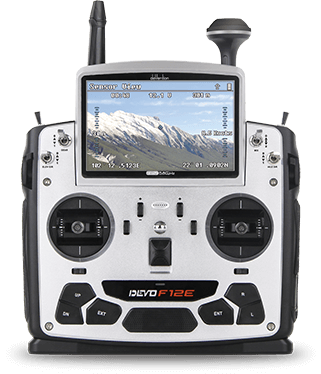

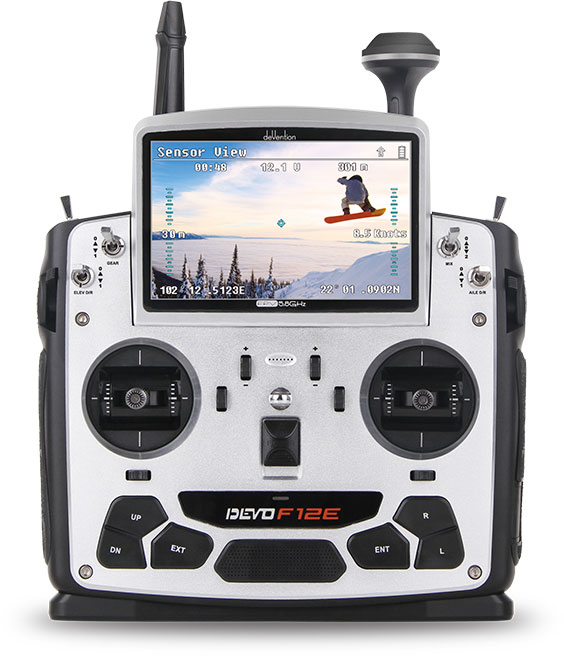

WALKERA - DEVO F12E

Specialized FPV radio

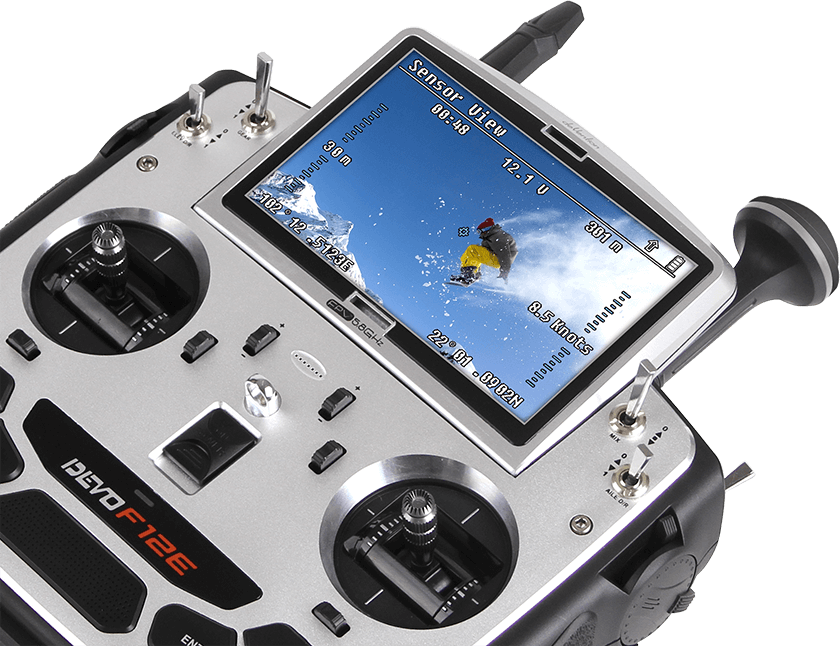

Telementry function

Telemetry function Shows the voltage, temperature
GPS coordinates, altitude, distance etc.,in real-time

Battery voltage, motor temperature real-time warning

3 pcs battery voltage monitoring display and 4 pcs temperature monitoring display

Long range video transmitter

Max transmit distance can reach to 1.5KM stable transmission signal

Pitch control Angle:-130°- +90°

Roll control Angle:-45°- +45°

Ergonomic gimbal control knob

Comfortable knob design Customizable gimbal control knob

Collected 2.4Ghz control system with5.8Ghz image transmission function

Build-in 32 channels to receive 5.8Ghz real-time images

ChannelFrequency	1	2	3	4	5	6	7	8
	5866MHz	5847MHz	5828MHz	5809MHz	5790MHz	5771MHz	5752MHz	5733MHz
	9	10	11	12	13	14	15	16
	5945MHz	5925MHz	5905MHz	5885MHz	5665MHz	5645MHz	5685MHz	5705MHz
	17	18	19	20	21	22	23	24
	5725MHz	5745MHz	5765MHz	5785MHz	5805MHz	5825MHz	5845MHz	5865MHz
	25	26	27	28	29	30	31	32
	5725MHz	5745MHz	5765MHz	5785MHz	5805MHz	5825MHz	5845MHz	5865MHz

Hyper- functional

Perfectly compatible with helicopter,
airplane, glider, multi-rotor
Memorized 15 model data
Wireless transmission
selectable TX power
fixed binding and random binding model

Multilanguage choosing

Selectable English \Deutsch\Francais\Espanol
to meet multinational users’requirements

Upgrade online freely

Customers could enjoy a lifelong USB quick and easy upgrade online

DEVO F12E transmitter Spec		Receiver Spec
Encoder	12-channel micro computer system	Type	2.4GHz 12 channels
Frequency	2.4GHz DSSS	Sensitivity	-105 dbm
Output power	≤100mW	Frequency interval	≥4M
Current drain	Close the video≤300mA(100mW) View the video≤430mA(100mW)	Weight	15g
Power supply	LiPo 7.4V/11.1V 1600-3000mAh or 5#Battery 8x1.5V or NiMH 8x1.2V 1,600-3,000mAh	Dimension	47x32x16mm
Output pulse	1000-2000US（1500US Neutral）	Receiver Battery	4.8-6V 1300mAh
